Measurement of replication structures at the nanometer scale using super-resolution light microscopy

Nucleic Acids Research, 2009, doi:10.1093/nar/gkp901, 1-11 published on 28.10.2009
Nucleic Acids Research, online article

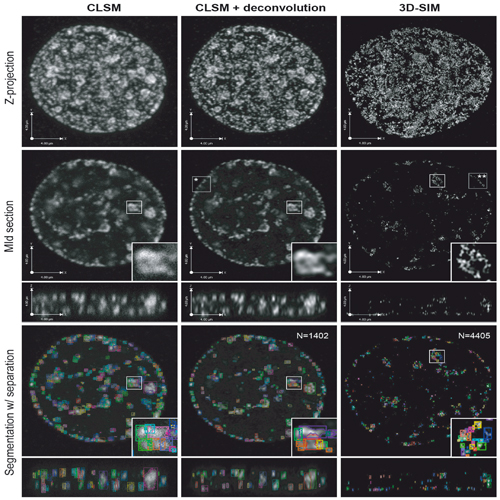

DNA replication, similar to other cellular processes, occurs within dynamic macromolecular structures. Any comprehensive understanding ultimately requires quantitative data to establish and test models of genome duplication. We used two different super-resolution light microscopy techniques to directly measure and compare the size and numbers of replication foci in mammalian cells. This analysis showed that replication foci vary in size from 210nm down to 40 nm. Remarkably, spatially modulated illumination (SMI) and 3Dstructured illumination microscopy (3D-SIM) both showed an average size of 125nm that was conserved throughout S-phase and independent of the labeling method, suggesting a basic unit of genome duplication. Interestingly, the improved optical 3D resolution identified 3- to 5-fold more distinct replication foci than previously reported. These results show that optical nanoscopy techniques enable accurate measurements of cellular structures at a level previously achieved only by electron microscopy and highlight the possibility of high-throughput, multispectral 3D analyses.
