Crystal structure of the sensory domain of Escherichia coli CadC, a member of the ToxR-like protein family

Protein Science, 2011, DOI: 10.1002/pro.594, 656-669 published on 24.01.2011
Protein Science, online article

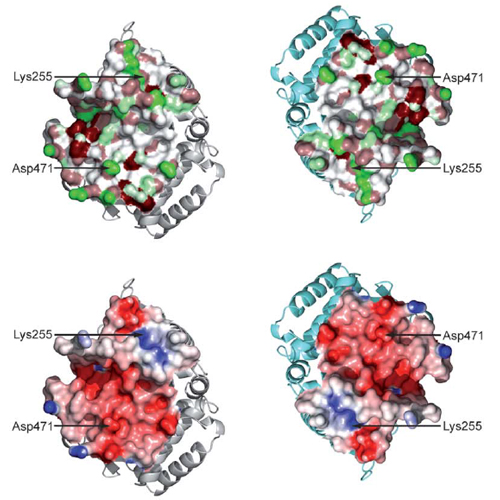

The membrane-integral transcriptional activator CadC comprises sensory and transcriptional regulatory functions within one polypeptide chain. Its C-terminal periplasmic domain, CadCpd, is responsible for sensing of environmental pH as well as for binding of the feedback inhibitor cadaverine. Here we describe the crystal structure of CadCpd (residues 188–512) solved at a resolution of 1.8 A ° via multiple wavelength anomalous dispersion (MAD) using a ReCl6 22 derivative. CadCpd reveals a novel fold comprising two subdomains: an N-terminal subdomain dominated by a b-sheet in contact with three a-helices and a C-terminal subdomain formed by an eleven-membered a-helical bundle, which is oriented almost perpendicular to the helices in the first subdomain. Further to the native protein, crystal structures were also solved for its variants D471N and D471E, which show functionally different behavior in pH sensing. Interestingly, in the heavy metal derivative of CadCpd used for MAD phasing a ReCl6 22 ion was found in a cavity located between the two subdomains. Amino acid side chains that coordinate this complex ion are conserved in CadC homologues from various bacterial species, suggesting a function of the cavity in the binding of cadaverine, which was supported by docking studies. Notably, CadCpd forms a homodimer in solution, which can be explained by an extended, albeit rather polar interface between two symmetry-related monomers in the crystal structure. The occurrence of several acidic residues in this region suggests protonation-dependent changes in the mode of dimerization, which could eventually trigger transcriptional activation by CadC in the bacterial cytoplasm.
